Pesado V2 High Diffusion shower screen - Breville 54mm

Our new 2.0 BR54HD High Diffusion Shower Screen now has an upgraded integrated channel design. This new design allows compatibility for all Breville 54mm machines with very easy installation across all machines.

The stock shower screen has a basket shaped design which has no way of directing the water flow consistantly where we want it to be during extractions. Now utilizing our one-of-a-kind integrated channels we can now target the exact same positions on the coffee puck every extraction. Precision water dispersion every espresso.

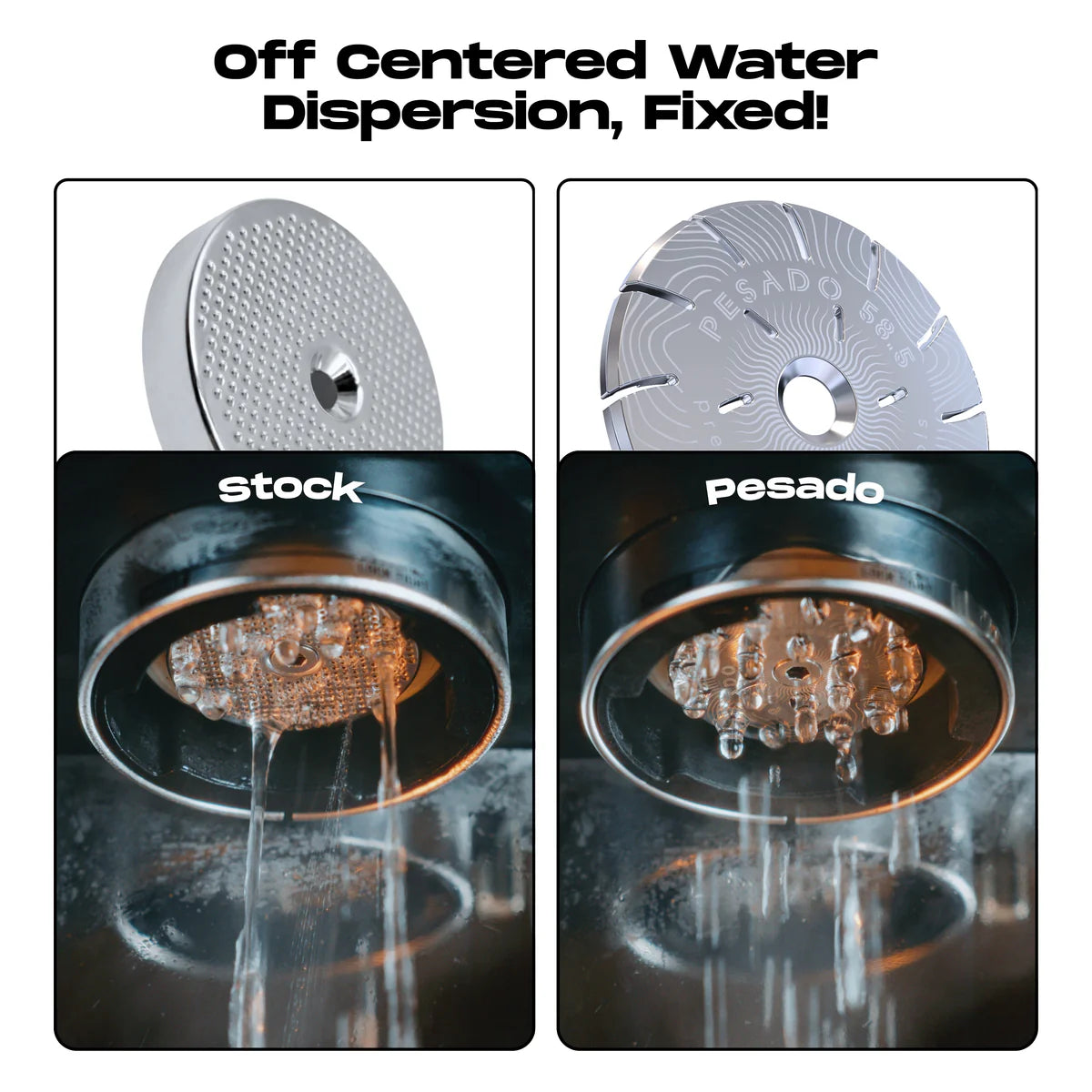

Corrects off-centered water dispersion
Our new diffusion disc corrects the off-centered water flow built into the Breville Barista Express, Infuser and Duo-temp group heads.

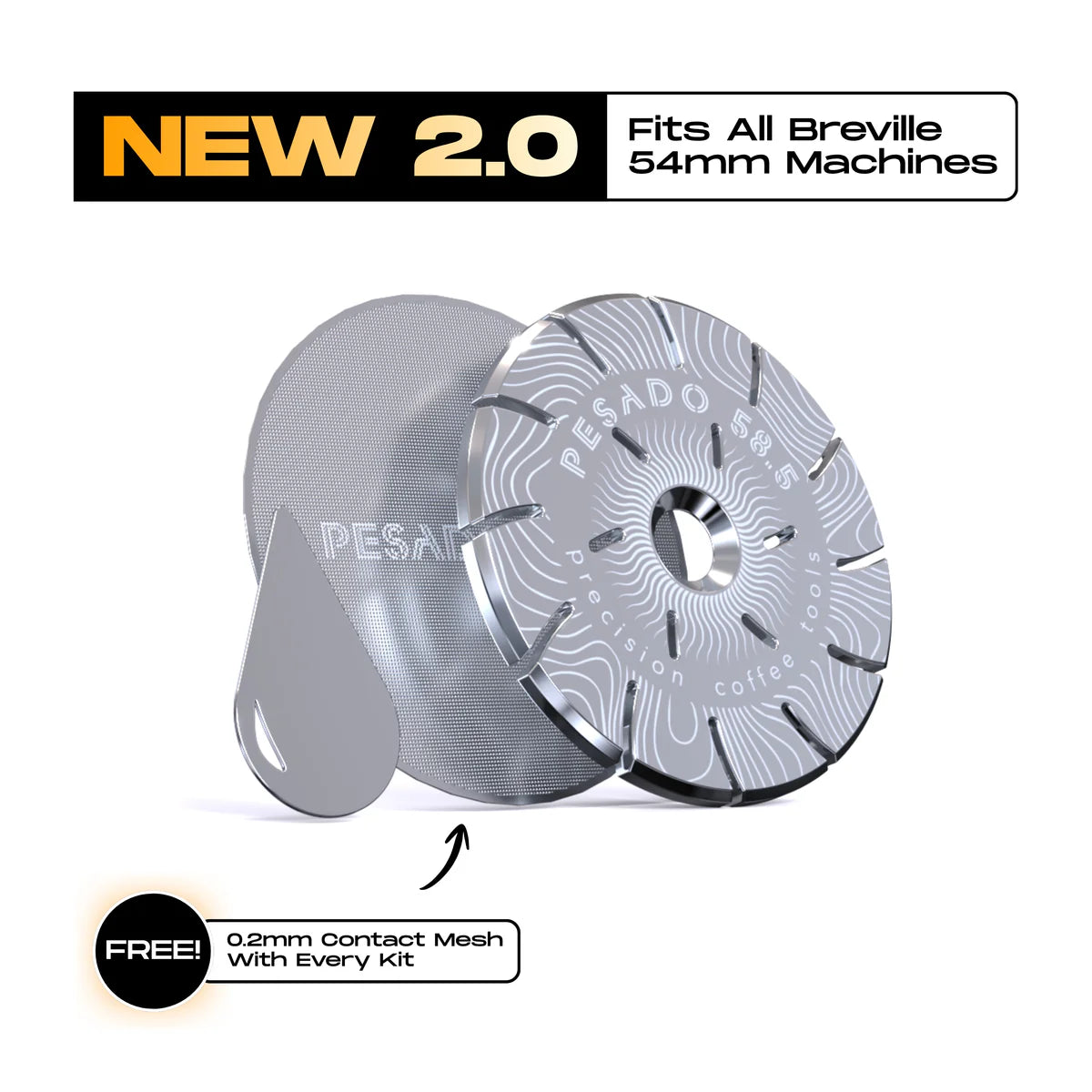

Now compatible with all Breville 54mm machines
Our new 2.0 54mm high diffusion shower screen is now compatible with all 54mm Breville machines. No need for two different sets!

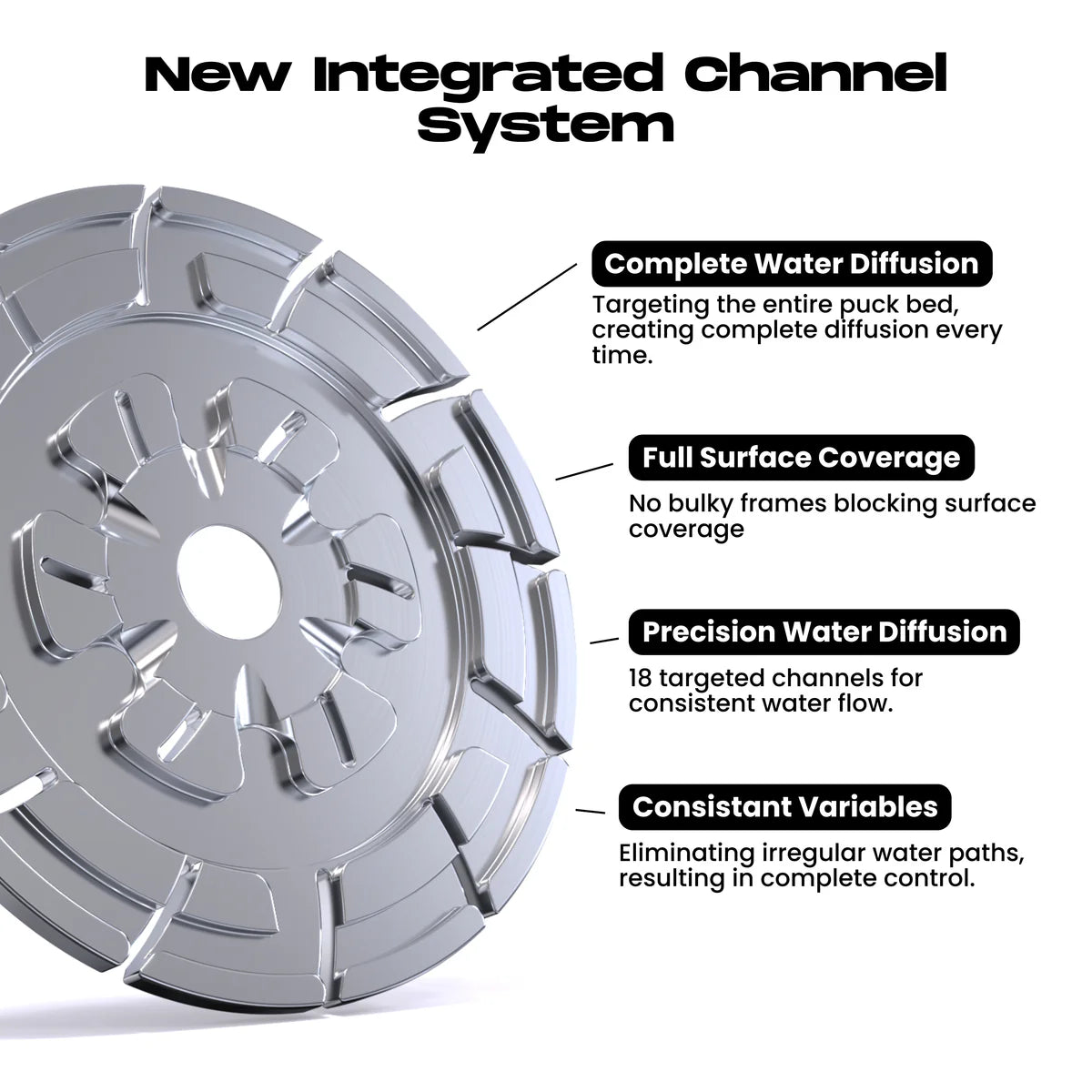

18 Targeted Channels
Ensures even water dispersion across the entire puck surface, every extraction. Crafted entirely from stainless steel, with 18 targeted channels the NEW Pesado HD High Diffusion Shower Screen gives complete control over your water distribution, every extraction.

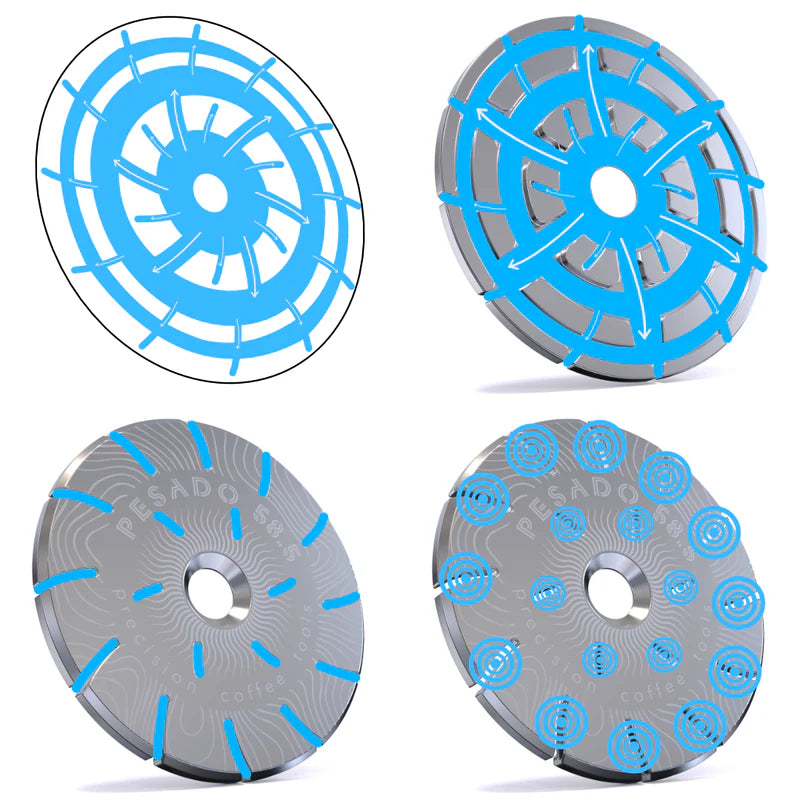

Regular Water Flow VS High Diffusion Water Flow
Regular Breville 54mm shower screens use a basket shaped shower screen that captures the water flow then diffuses the water out across the coffee puck. Unfortunately these have no way to evenly diffuse the water and tend to bundle the flow into 2-4 thick streams which can break the puck causing excess channeling.

The HD High Diffusion Espresso Shower Screen has been designed with channels to distribute the water flow exactly where we want it to be every time. Using this method allows us to hit the exact area we need to every extraction, distributing the water flow outwards across the entire puck bed, evenly. The HD Shower Screen also has a unique feature where the outer channels run all the way to the edge, allowing water to flow directly out the ends into the basket wall.

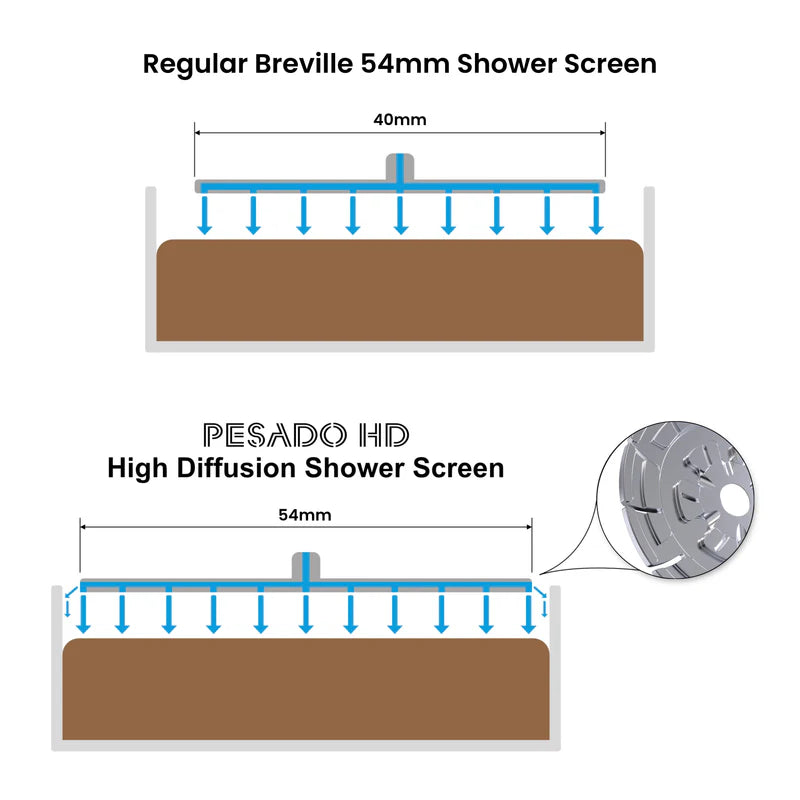

High Diffusion Puck Clearanc
Most shower screens are only designed to cover up to 54mm in diameter, leaving between 4-5mm around the perimeter, resulting in a smaller surface area of about 10-15% less coverage. Utilizing the unique design of the water channels that run all the way to the edge of the shower screen, including the extended diameter of 58.35mm of surface area, we can target the entire puck bed all at once resulting in a full, and complete infusion.

What's the difference between the regular shower screens and the HD high diffusion shower screen?
The HD Shower Screen is designed to target the entire surface area of the puck bed, consistently every extraction. Utilizing an 18-channel design that targets up to 58.35mm of surface area, we can target the same spots of the puck bed every shot. This creates consistent, precise water diffusion.

Regular mesh shower screens cause erratic water diffusion due to the water gripping to the mesh and flowing completely different paths every extraction. This creates variables every time you extract that you cannot control.

Grab yourself the HD High Diffusion Espresso Shower Screen and create consistent, precise and high-diffused extractions for every shot.

How do I clean the HD Shower Screen?
When using the HD espresso shower screen daily we recommend using a cleaning brush to keep the outer surface and channels free of coffee grounds.

Once a week we recommend a full clean, which involves unscrewing the shower screen and washing both the shower screen plate and screws under water. This will ensure no buildup, and a clean and consistent flow of water for every extraction.

How to install:

• Simply unscrew the center shower screw on your shower screen, and detach the shower screen from the group head.

• Make sure to clean any residue on the group head before screwing in the new shower screen. We recommend doing a complete backflush before using new shower screen.

• Screw in the new 54HD high diffusion shower screen using your current shower screw, and you are good to go!
• Installation Video: Watch here



Features:

• 18 Targeted Channels

• Precision Water Diffusion

• High Surface Coverage



Specifics:

• Compatible - All Breville 54mm group head machines.

  Barista Express, Barista Express Impress (manual dose recommended), Infuser, Bambino, Bambino Plus, Barista Pro, Barista Touch, Breville Touch Impress, Infuser, Duo-Temp Pro, Sage, Solis. Not compatible with Breville 54mm single baskets. Only recommended use with double baskets.

• Material - 304 Stainless Steel
• Thickness - 2.6mm

• Holes - 18 Channels
• Diameter - 53mm
• Weight - 45g
• Dimensions - W 53 x H 2.6mm

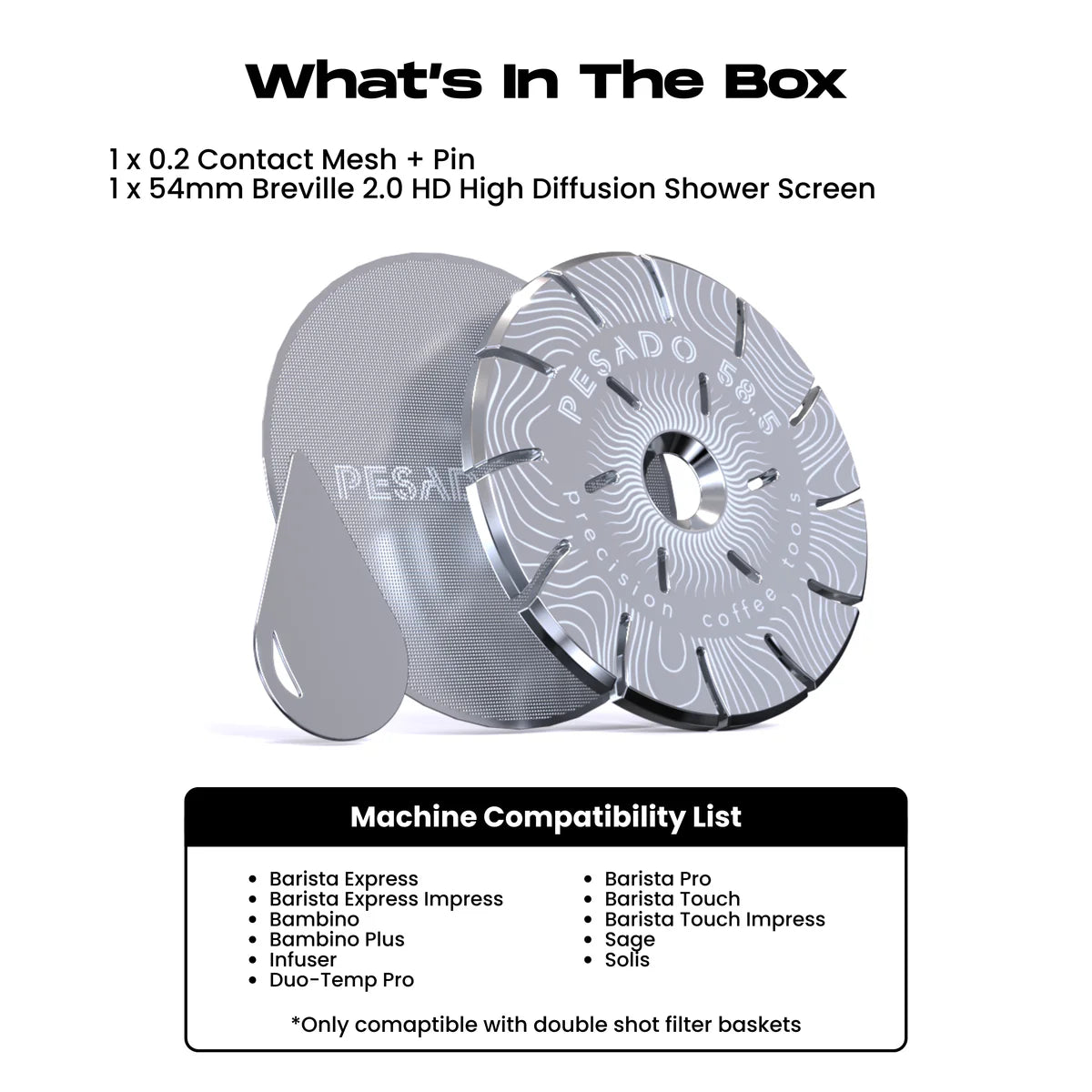

What's Included:

• 1 x Pesado High Diffusion shower screen

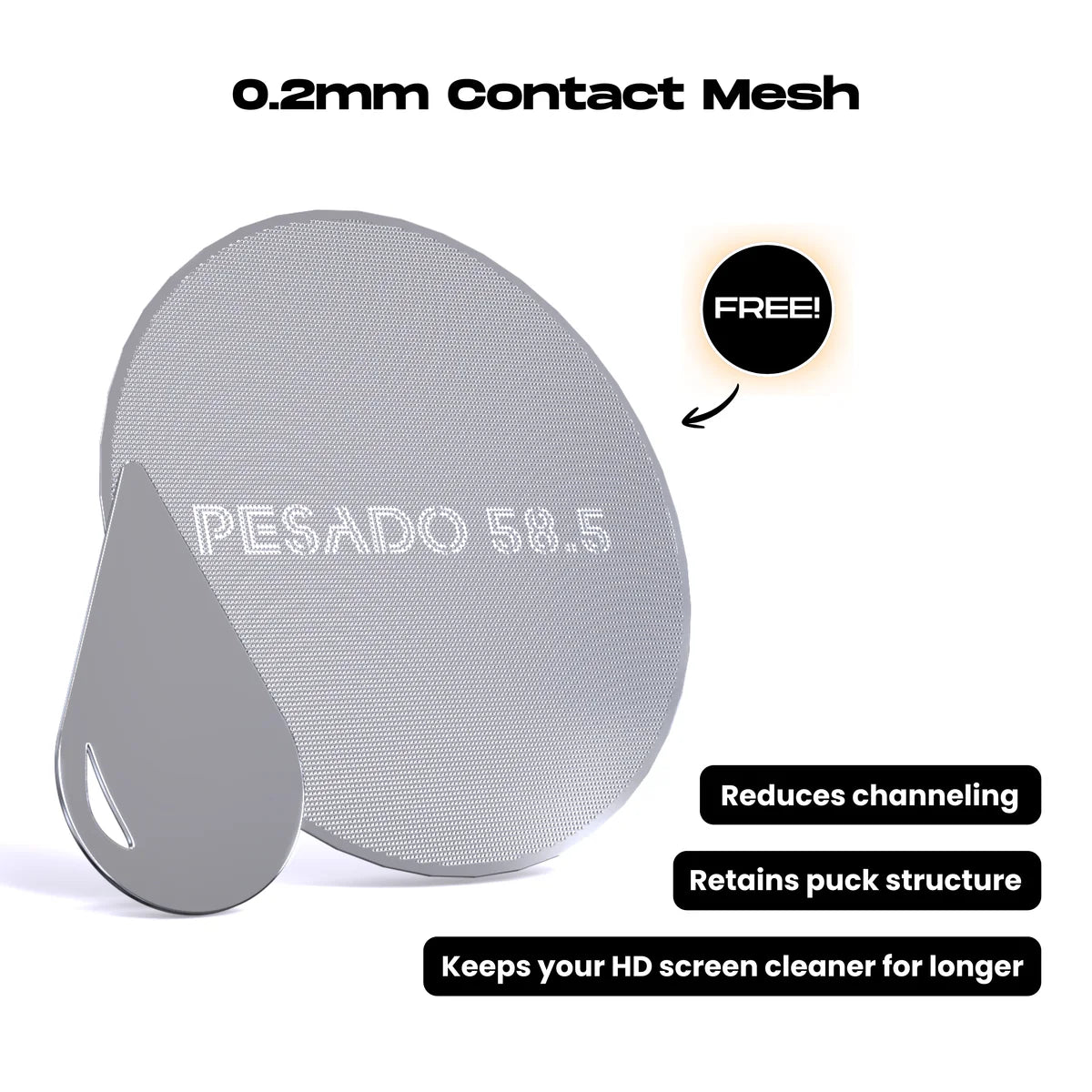

• 1 x 0.2mm Contact Mesh + Pin
