Pesado High Diffusion Shower Screen - MV Breville 58mm

Improve control over water distribution across the coffee puck with the Pesado High Diffusion Shower Screen for MV / Breville 58mm groups. Its 18-channel stainless-steel design extends the channels toward the screen edge to direct water across a wider area. Check the machine compatibility and installation requirements below before ordering.

Perfect For

• Espresso machine owners with a listed compatible MV / Breville 58mm group
• Baristas seeking a shower screen designed to distribute water across the puck surface
• Users who want a serviceable screen with accessible channels for cleaning

Feature

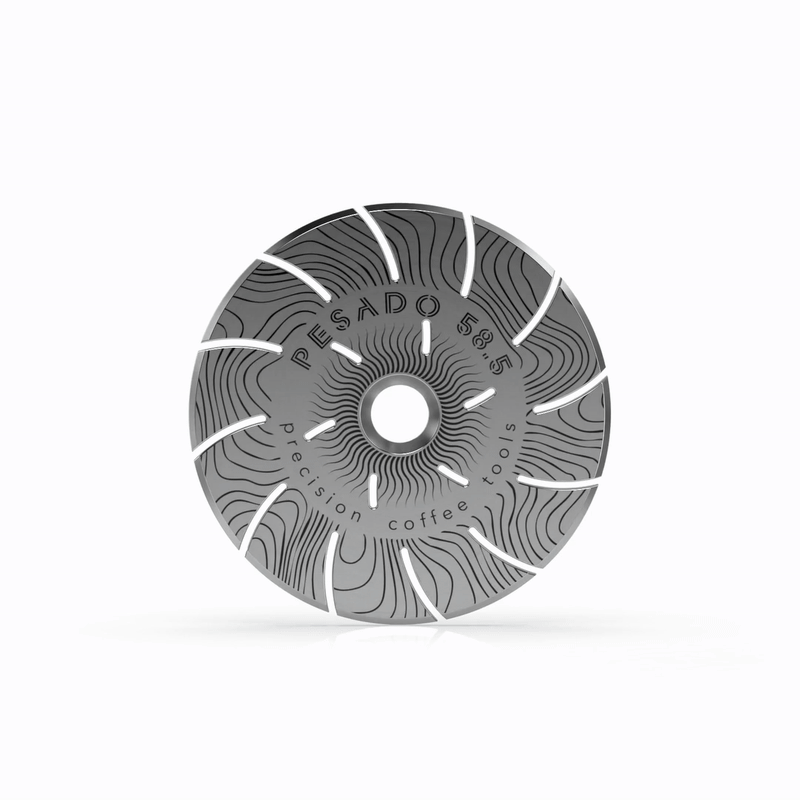

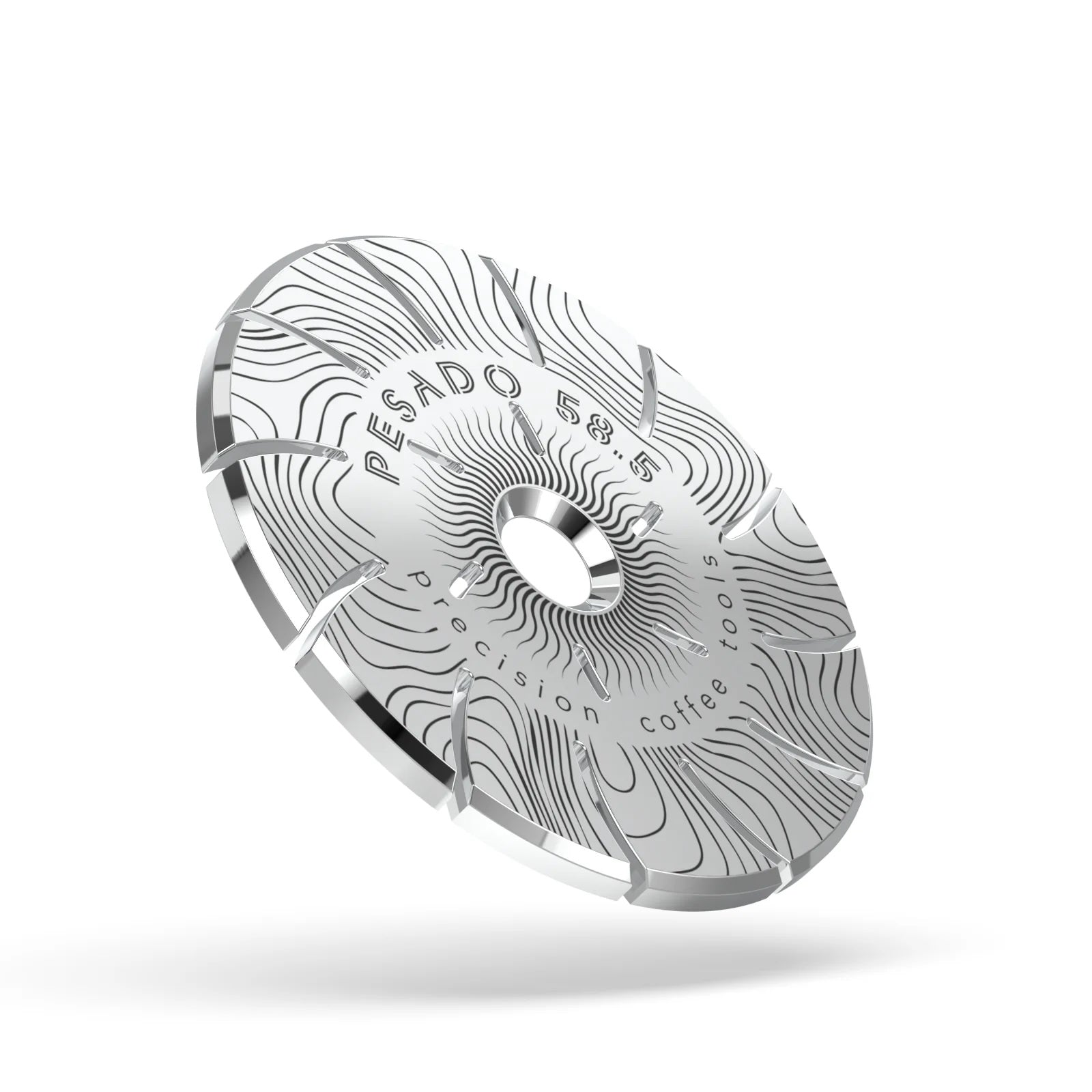

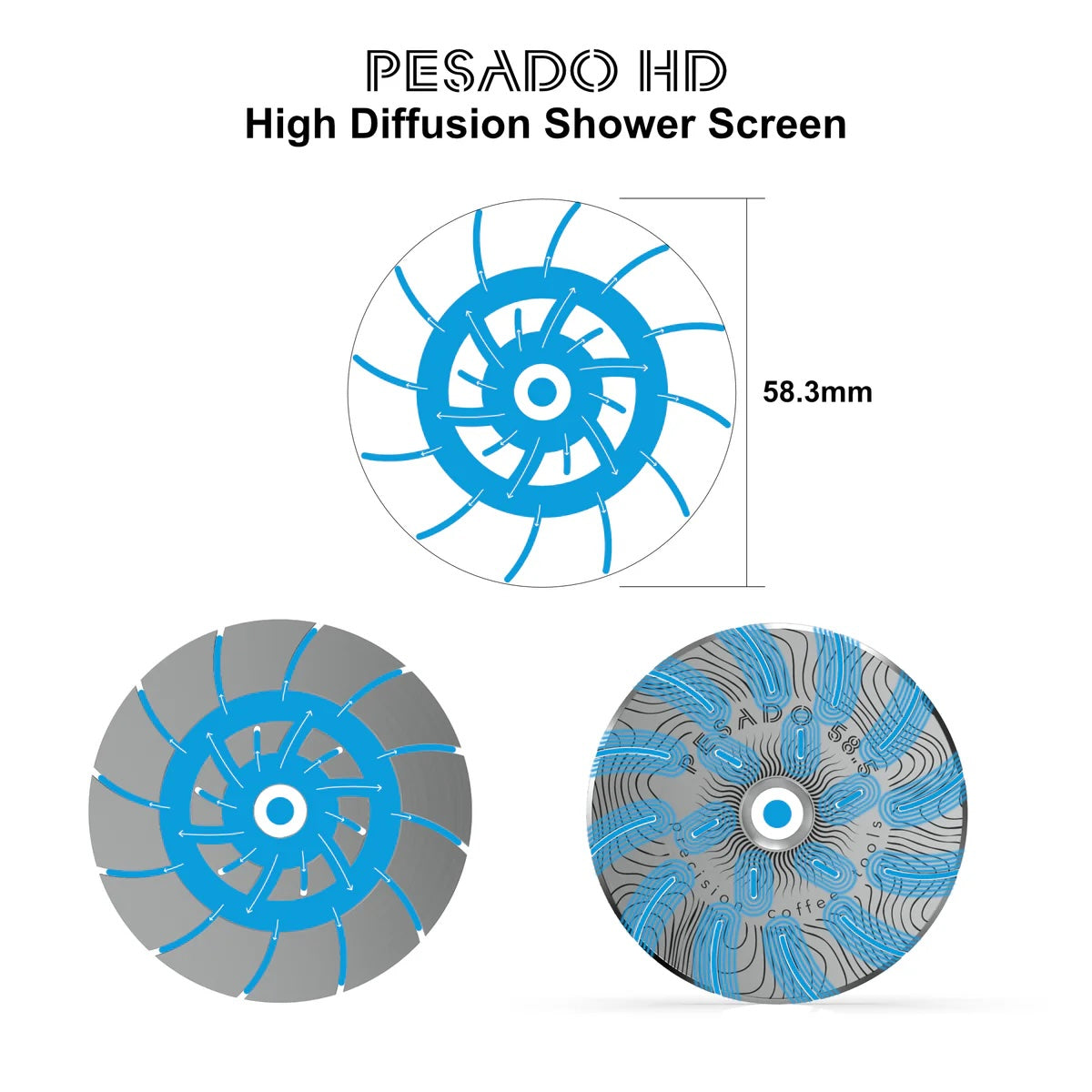

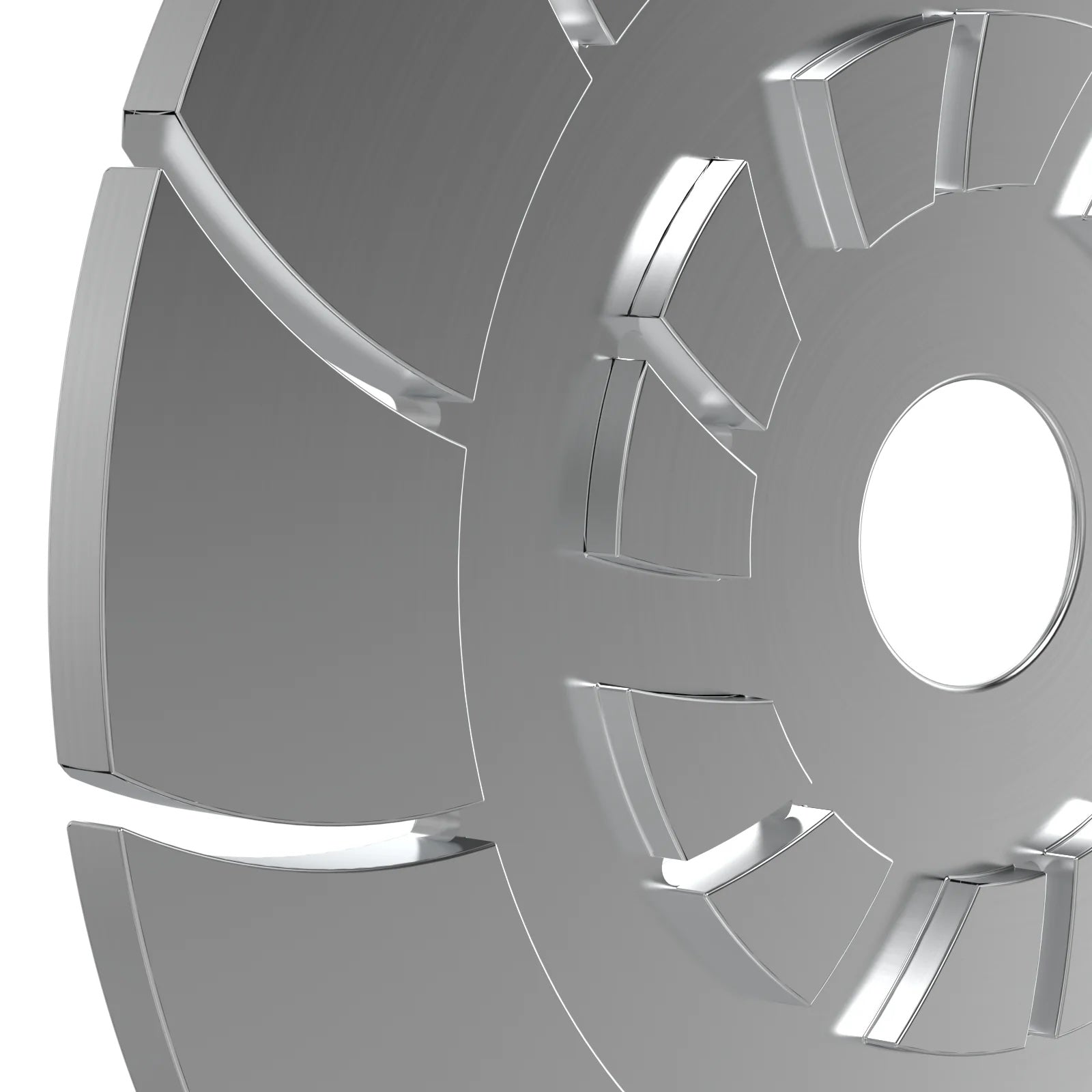

• 18 targeted channels: Designed to direct water across the puck bed.

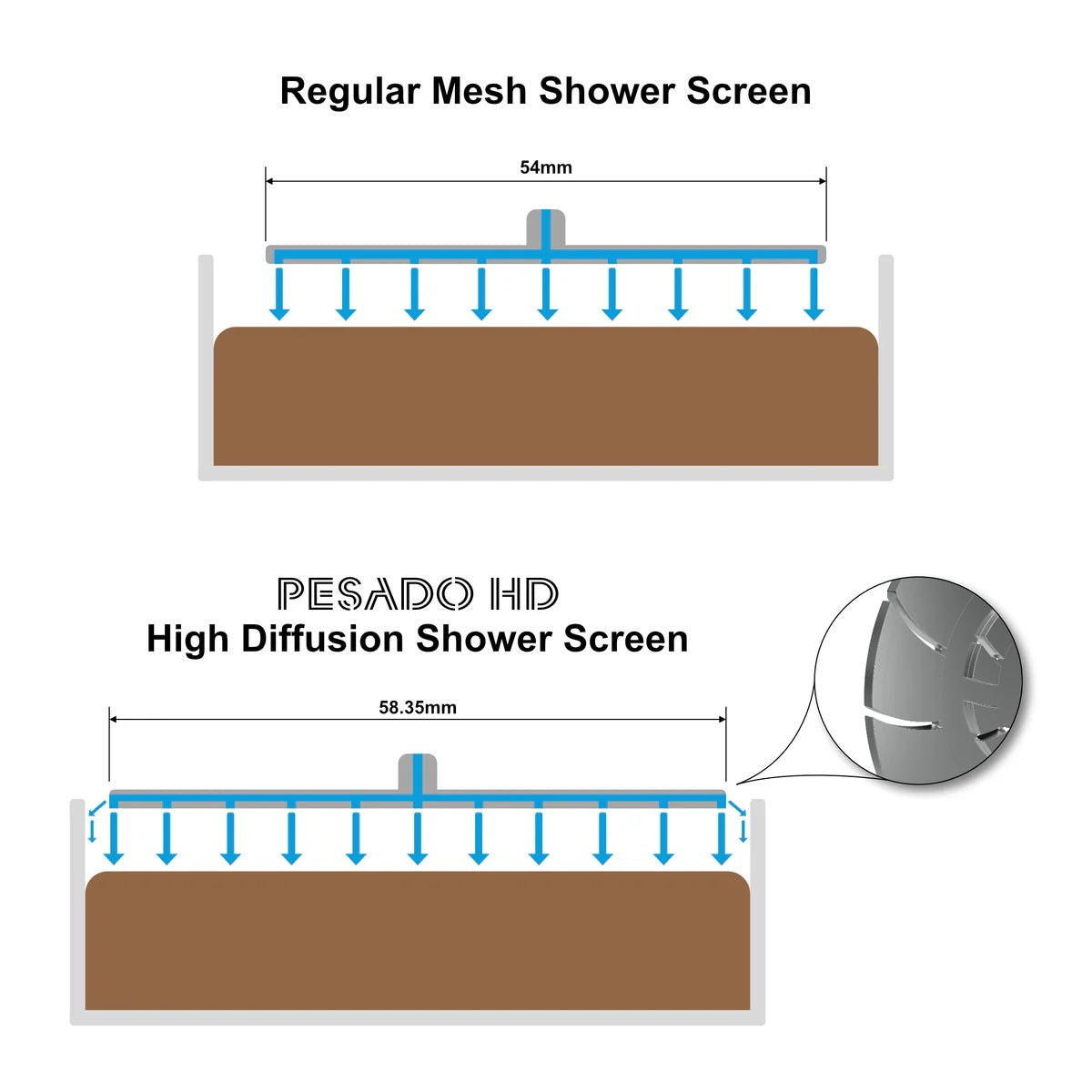

• Extended channel coverage: Outer channels run toward the edge to cover a larger area of the basket.
• All stainless steel: 304 stainless-steel screen construction.
• Maintenance access: Removable for cleaning the channels and group head.
• Breville basket note: For Breville 58mm groups, the portafilter should have two wings, not three. Use double baskets only; not compatible with 58mm single baskets.

Specifications

• Brand: Pesado
• Variant: MV / Breville 58mm
• Compatibility: Listed for Mavam, Nuova Simonelli, Victoria Arduino, Breville 58mm (two-wing portafilter, not three-wing), Rancilio Silvia/Pro X, Profitec Go/Move, Bezzera BZ group, Lelit Elizabeth/Victoria and ECM Casa V. Not compatible with Breville 58mm single baskets; use double baskets only.
• Material: 304 stainless steel
• Thickness: 3mm
• Channels: 18
• Diameter: 58.35mm
• Weight: 160g
• Dimensions: 58.35mm wide × 3mm high

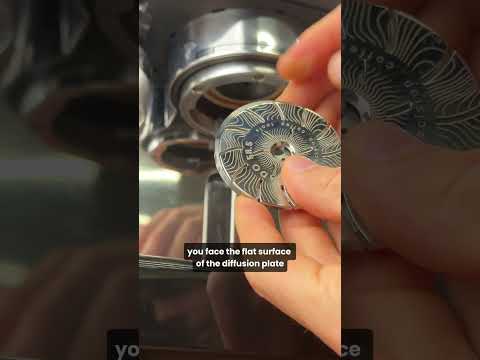

• Installation: Remove the current centre screw and screen/diffusion plate, clean the group head, place the supplied diffusion plate with the indent facing the machine, and screw the new screen and plate in using your existing screw. The current shower screen screw is reused.
• Care: Brush the outer surface and channels during daily use. The listing recommends removing and rinsing the screen and screw weekly.

What’s Included

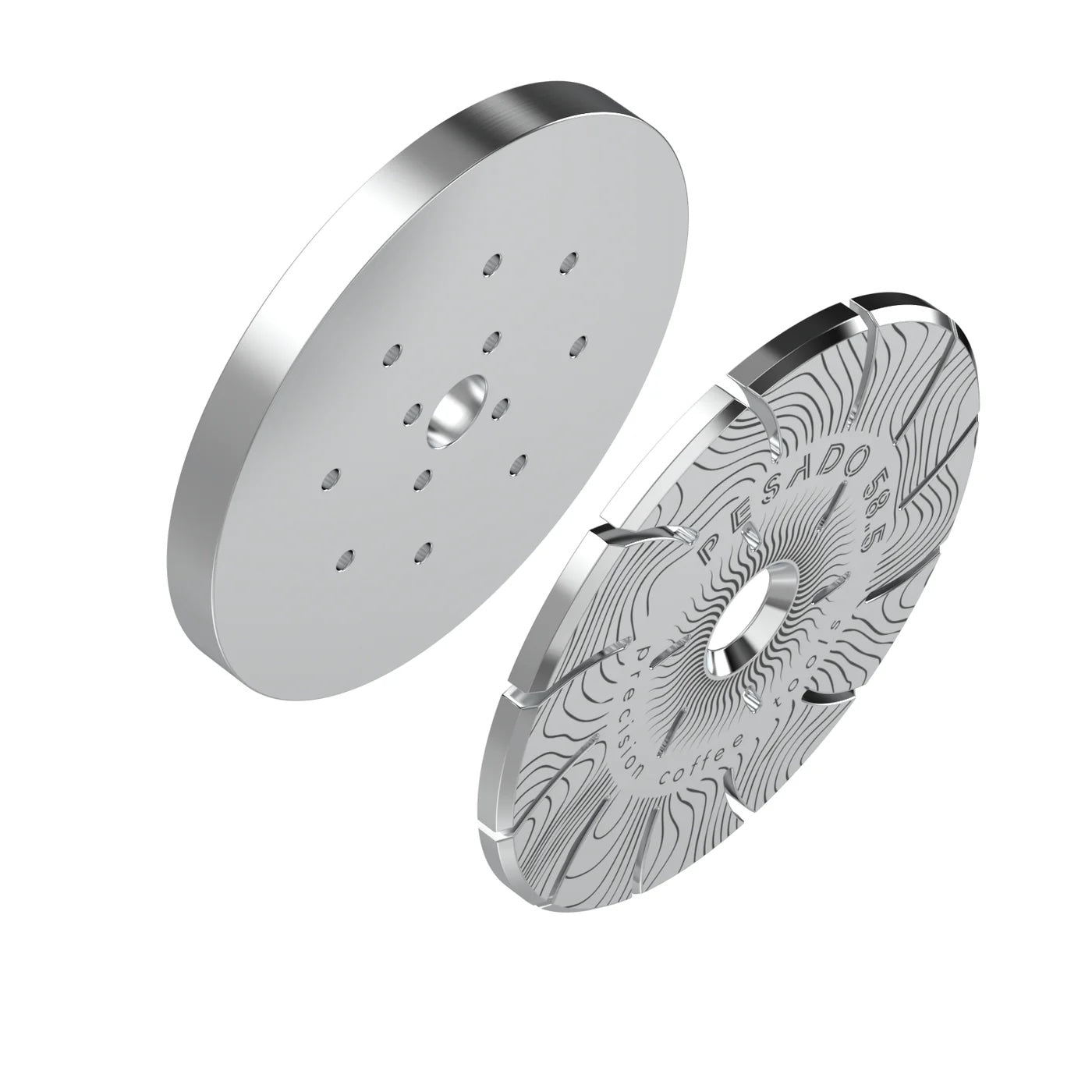

• Diffusion plate
• Pesado High Diffusion shower screen for MV Breville 58mm

FAQs

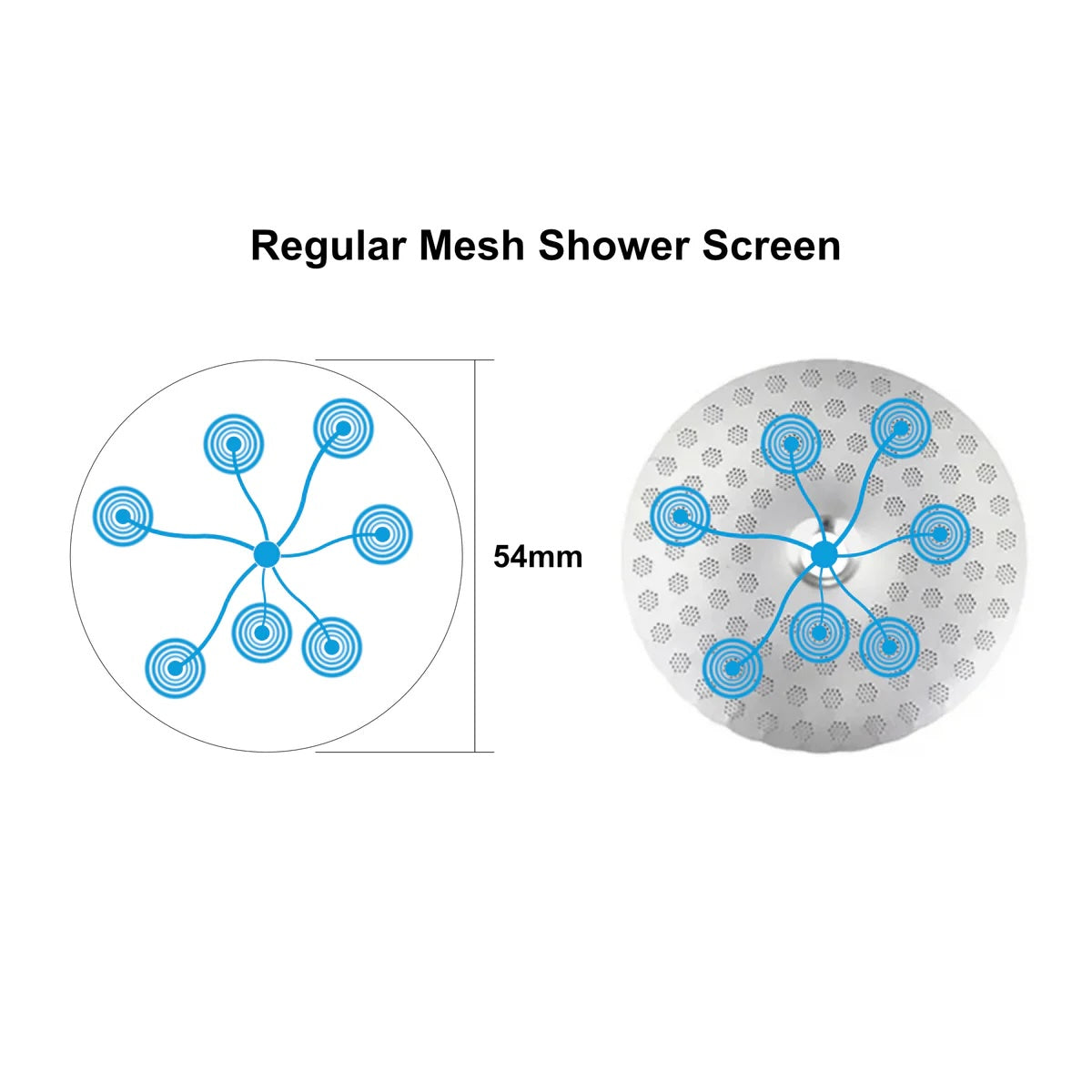

• How does the high diffusion screen differ from a mesh screen?
  It uses 18 channels to direct water across the puck, including toward the outer edge, rather than relying on mesh.
• Which machines is this version for?
  Listed for Mavam, Nuova Simonelli, Victoria Arduino, Breville 58mm (two-wing portafilter, not three-wing), Rancilio Silvia/Pro X, Profitec Go/Move, Bezzera BZ group, Lelit Elizabeth/Victoria and ECM Casa V. Not compatible with Breville 58mm single baskets; use double baskets only.
• How do I install it?
  Remove the current centre screw and screen/diffusion plate, clean the group head, place the supplied diffusion plate with the indent facing the machine, and screw the new screen and plate in using your existing screw. The current shower screen screw is reused.
• How should I clean the screen?
  Brush the channels and outer surface regularly; remove and rinse the screen and screw periodically to clear residue.
• Does this screen fit every espresso machine?
  No. It is model-specific. Check the compatibility list and confirm your group-head design before purchase.
• How many channels does it have?
  18 channels.
